    Waterproof Door Sensor WECO 917M Lift Light Curtain

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917 / 957M
    Certification : CE CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1400000SETS/Year
    Delivery Time : 5-8 Workdays
    • Product Details
    • Company Profile

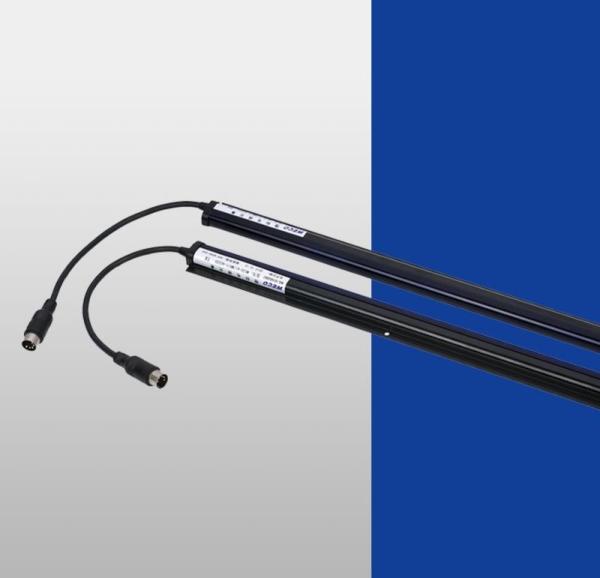

    Waterproof Door Sensor WECO 917M Lift Light Curtain

    Waterproof Door Sensor WECO 917M Lift Light Curtain

    Ningbo WECO Optoelectronics CO., LTD. is specilizing in elevator door detector manufacturering and designing. WECO-917/ 957M model elevator door detector is an new standard model which has waterproof function. So WECO-917/ 957M model door detector can be suitable for out door elevator. .

    Morever, the mounting hole of WECO-917/ 957M is customized on site but will not influence light curtain function.


    Specification

    Technical Features917M6917M7957M6957M7957M8957M9
    Number of infra red diodes17diodes32diodes17diodes32diodes40diodes48diodes
    Response timerelay output45ms61ms45ms61ms69ms77ms
    transistor output21ms37ms21ms37ms45ms53ms
    Scanning Bema94~33 beams154~94 beams94~33 beams154~94 beams194~118 beams234~142 beams
    Detecting Height20~1841mm
    Detecting range0~4m
    Operating Temperature-20℃~+65℃
    Light immunity1000000Luxsunlightproof
    RedundancyNOYESNOYESNO
    Led InterpretationThe yellow LED and red LED in receiver is on when blocked or in malfunction
    The yellow LED in receiver is on and red LED in receiver off without blocking.

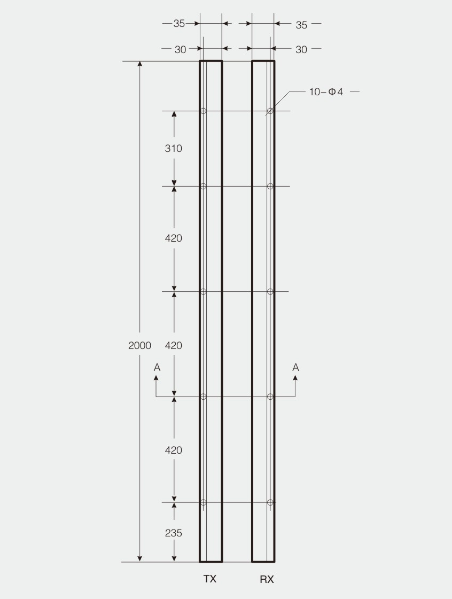

    Dimension



    Package
    Every piece packed in tube,five tubes in a bundle;
    Each tube includes
    Power supply control unit (1pieces)
    Durable flexible cable (2cables)
    Transmitter (1pieces)
    Receiver (1pieces)
    User Manual (1copy)
    Mounting accessories (1 set)


    What's More?
    --- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.


    --- We have a plenty of stock for this model safety photocell both in English and Chinese version.


    --- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..


    --- Our products has WECO-917 Series, WECO-957 Series, and WECO-987 Series. The WECO-957 & 987 series is complaint to EN81-20 New europe standard.
