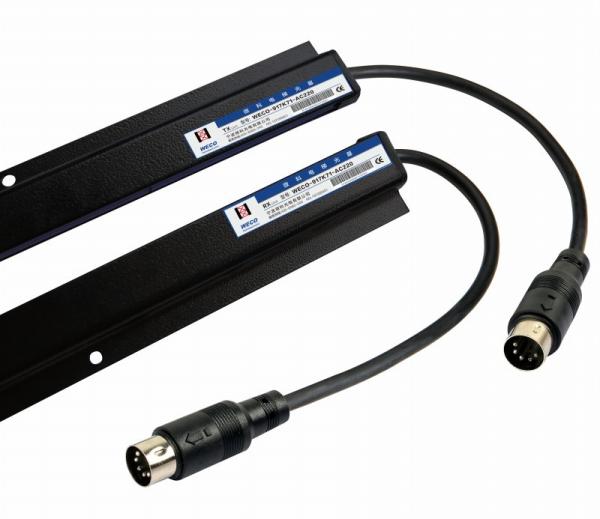

    IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917K
    Certification : CE, CSA
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1200000SETS/Year
    Delivery Time : 8-10 Days
    • Product Details
    • Company Profile

    IP54 WECO Light Curtain 917K for Passenger Lift, Elevator Spare Pats AC220

    CE, Elevator Door Sensor, WECO Light Curtain 917K for Passenger Lift

    Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this K profile full height door sensor is widely used and purchased because of slim thickness and special structure. The clients always install this WECO-917K model door sensor on passenger lift and cargo lift.


    Specification

    Technical Parameter917K6917K7
    Number of Infra Red Diodes17 Diodes32 Diodes
    Response Time45ms relay output61ms relay output
    21ms transistor output37ms transistor output
    Scanning Beams99-33 Beams154-94 Beams
    Detecting Height20-1841mm
    Redundary FunctionNOYES
    Operation Temperature-20℃-+65℃
    Detecting Range0-4m
    Light Immunity100000Lux
    Protection LevelIP54
    EMC
    EN12015General Circuit Level
    EN12016
    Voice Reminderafter continuous detection for 15s, buzzer ON.
    LED InterpretationYellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.
    Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

    Size:


    Package


    Every piece packed in tube,five tubes in a bundle;
    Each tube includes:
    Power supply control unit:(1pieces)
    Durable flexible cable: (2cables)
    Transmitter: (1pieces)
    Receiver: (1pieces)
    User Manual: (1copy)
    Mounting accessories: (1 set)




    Why choose this model?


    WECO-917K model elevator door detector has better prevent from dust / water protection because of special structure.

    Also WECO-917K elevator door detector is applicable to work together with our parted 3D sensor to achieve 3D protection range.

    What's more?


    --- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
    --- We have two automatic production lines to ensure good quality and fast delivery time.
    --- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
