Brand Name : | WECO |
Model Number : | WECO-917 / 957Q |
Certification : | CE CSA CCC |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 1400000SETS/Year |
Delivery Time : | 5-8 Workdays |
Full Height WECO Infrared Light Curtain Q Model 17mm Diameter
Connector
WECO-917/ 957Q model Lift Door Sensor is the earliest model that
Ningbo WECO Optoelectronics CO., LTD. developed since 1998. Also
this model full height door sensor is widely used and purchased
because of the price advantage and slim thickness. The clients
always install this WECO-917/ 957Q model door sensor on passenger
lift and cargo lift. Giantkone, Hangzhou XO always purchase this
model.
Specification
Technical Features | 917Q6 | 917Q7 | 957Q6 | 957Q7 | 957QL8 | 957Q9 | |
Number of infra red diodes | 17diodes | 32diodes | 17diodes | 32diodes | 40diodes | 48diodes | |
Response time | relay output | 45ms | 61ms | 45ms | 61ms | 69ms | 77ms |
transistor output | 21ms | 37ms | 21ms | 37ms | 45ms | 53ms | |
Scanning Bema | 94~33 beams | 154~94 beams | 94~33 beams | 154~94 beams | 194~118 beams | 234~142 beams | |
Detecting Height | 20~1841mm | ||||||
Detecting range | 0~4m | ||||||
Operating Temperature | -20℃~+65℃ | ||||||
Light immunity | 1000000Lux | sunlightproof | |||||
Redundancy | NO | YES | NO | YES | NO | ||
Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||||||
The yellow LED in receiver is on and red LED in receiver off without blocking. |
Dimension& Installation Holes

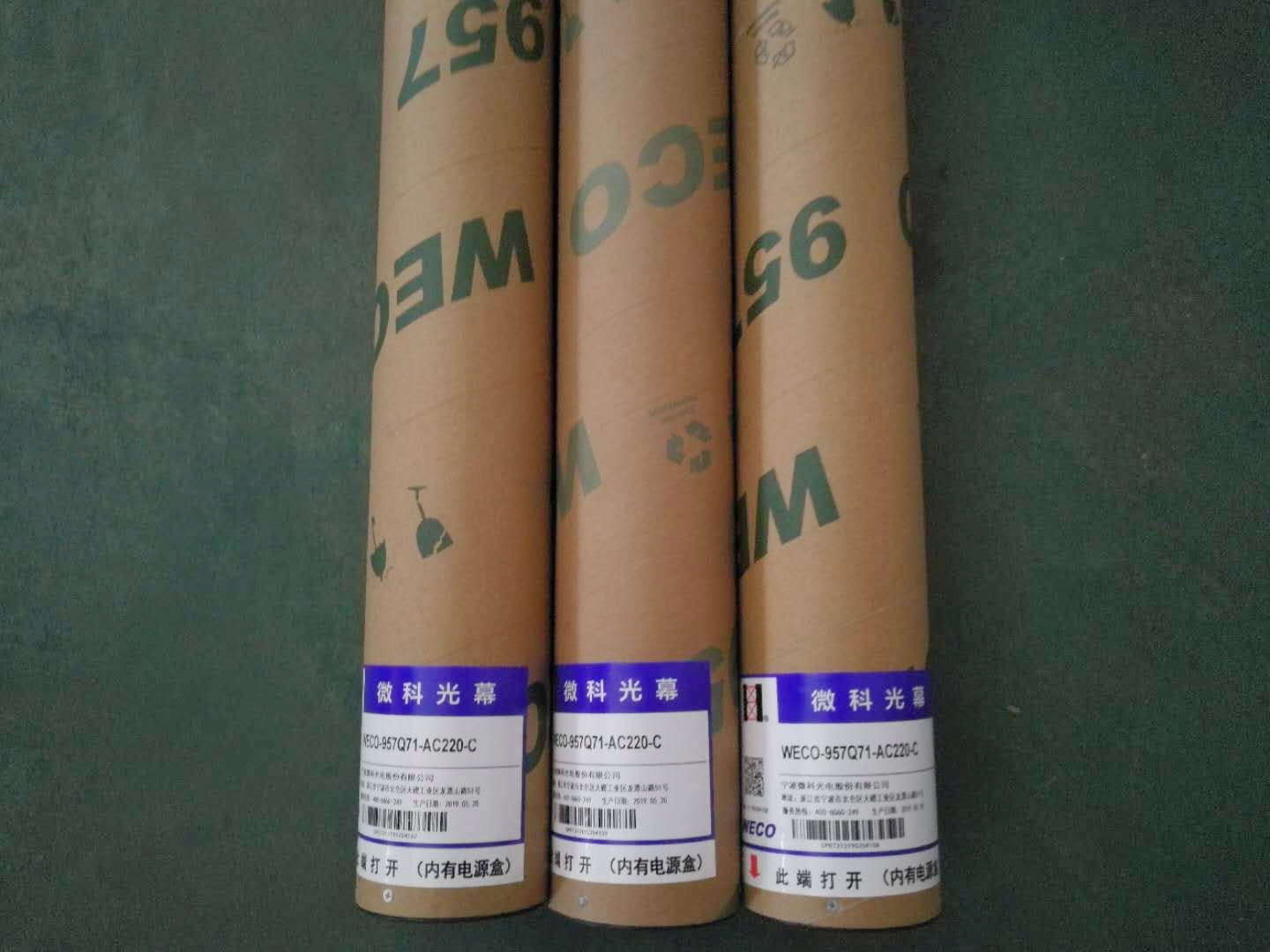

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
More about WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years
experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both
in English and Chinese version.
--- Each set products all has been scanned into our system and we
can get to know when and how the product was produced only through
the product series NO..
--- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately
![]() |
