194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell

NINGBO WECO OPTOELECTRONICS CO., LTD.
Contact Now
    Buy cheap 194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell from wholesalers

    Buy cheap 194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell from wholesalers
    • Buy cheap 194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell from wholesalers

    194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917 / 957H
    Certification : CE CSA CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1400000SETS/Year
    Delivery Time : 5-8 Workdays
    • Product Details
    • Company Profile

    194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell

    194 Beans WECO Elevator Door Detector AC220V Central Opening Photocell


    About WECO-917/ 957H

    WECO-917/ 957H elevator door detector is a new design model as per our clients indeed.


    The mainly special feature for 917/ 957H elevator door photocecll is that there only two mounting holes on the door photocell, which makes the door detector looks more elegant.


    Suzhou Dongnan elevator CO., is using this model on their lifts. And we exported to Australia and other countries to install on home lift also.


    Whats more, WECO-917/ 957H elevator door photocecll also can work together with our parted 3D light curtain to achieve more safety protection level.

    It is easier to be installed as there are only two mounting holes on top and bottom profile boday seperately.


    Application

    WECO-917/ 957H elevator door photocecll is widely used on residence elevator/ home lift/ Shopping mall.


    Technical Features917H8957H8
    Number of infra red diodes40diodes40diodes
    Response timerelay output69ms69ms
    transistor output45ms45ms
    Scanning Bema194~18beams194~118beams
    Detecting Height20~1841mm
    Detecting range0~4m
    Operating Temperature-20℃~+65℃
    Light immunity1000000Luxsunlightproof
    RedundancyYESNO
    Led InterpretationThe yellow LED and red LED in receiver is on when blocked or in malfunction
    The yellow LED in receiver is on and red LED in receiver off without blocking.

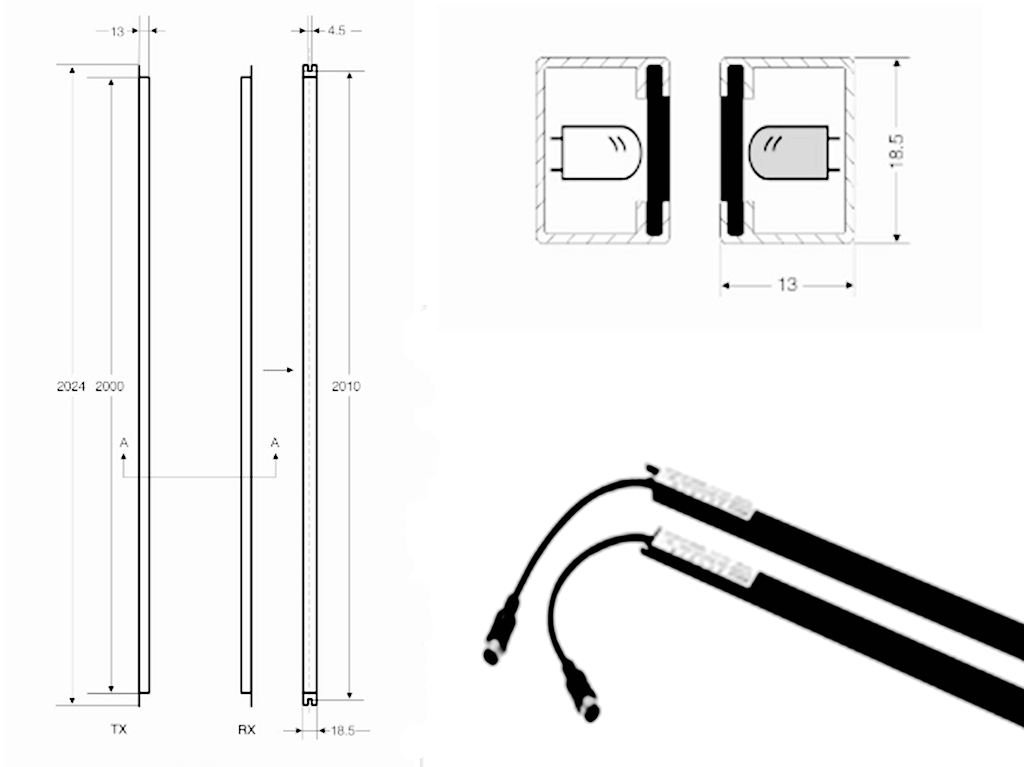

    Dimension & Mounting Holes


    Package
    Every piece packed in tube,five tubes in a bundle;
    Each tube includes
    Power supply control unit (1pieces)
    Durable flexible cable (2cables)
    Transmitter (1pieces)
    Receiver (1pieces)
    User Manual (1copy)
    Mounting accessories (1 set)


    Delivery

    * Prompt deliver at the very day.


    * Well-trained and disciplined packing team.


    * After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


    * Sophisticated and professional logistic agent.


    What we have?

    --- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in elevator light curtain manufactuering and designing.


    --- We have a plenty of stock for this model elevator light curtain to make sure quick delivery.


    --- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..


    --- Flexible and Untraceable payment terms.


    --- Good after-sale service.
