WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain

NINGBO WECO OPTOELECTRONICS CO., LTD.
Contact Now
    Buy cheap WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain from wholesalers

    Buy cheap WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain from wholesalers
    • Buy cheap WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain from wholesalers

    WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917A
    Certification : CE, CSA
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1200000SETS/Year
    Delivery Time : 5-8 Wrokdays
    • Product Details
    • Company Profile

    WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain

    WECO 94 Beams Multi Beam Sensor 917 / 957A 3.5m Cable Infrared Light Curtain


    Ningbo WECO Optoelectronics CO., LTD. is specilizing in elevator door detector manufacturering and designing. WECO-917A model elevator door detector is the first model we developed since 1998. As see, this model door detector is the most economic type and each super good sales performance every year.

    The WECO-917A61-AC220 always is installed on cargo lift and clients will choose more than 154 beams door detector to install on passenager lift.


    Morever, we do customized service as per our clients requirement. So that you may find that there also has WECO-917A model with 500mm, 1000mm, 900mm and many different type length.


    Besides, it can work with different type power box, like AC220, AC110V, DC24V, also with NPN, PNP NO/NC output.


    Technical Features917A6917A7957A6957A7957A8957A9
    Number of infra red diodes17diodes32diodes17diodes32diodes40diodes48diodes
    Response timerelay output45ms61ms45ms61ms69ms77ms
    transistor output21ms37ms21ms37ms45ms53ms
    Scanning Bema94~33 beams154~94 beams94~33 beams154~94 beams194~118 beams234~142 beams
    Detecting Height20~1841mm
    Detecting range0~4m
    Operating Temperature-20℃~+65℃
    Light immunity1000000Luxsunlightproof
    RedundancyNOYESNOYESNO
    Led InterpretationThe yellow LED and red LED in receiver is on when blocked or in malfunction
    The yellow LED in receiver is on and red LED in receiver off without blocking.


    PACKAGE
    Power supply control unit (1pieces)
    Durable flexible cabie (2cables) 3.5M Standard.
    Transmitter (1pieces)
    Receiver (1pieces)
    User Manual (1copy)
    Mounting accessories (1 set)

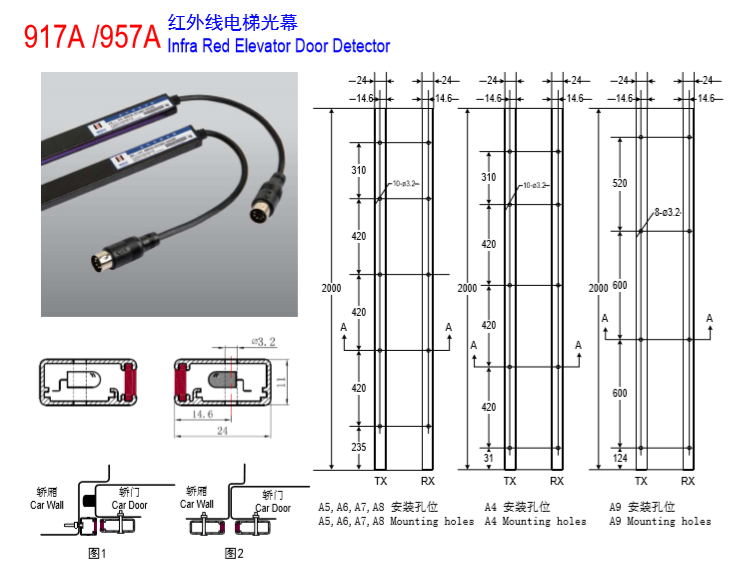

    Insallation and Dimension

    What's More?


    ---Your supplier Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in elevator door detector manufacturing;


    ---We guanrantee any elevator door detector damaged caused by our quality within 12 months, we can free replacement;

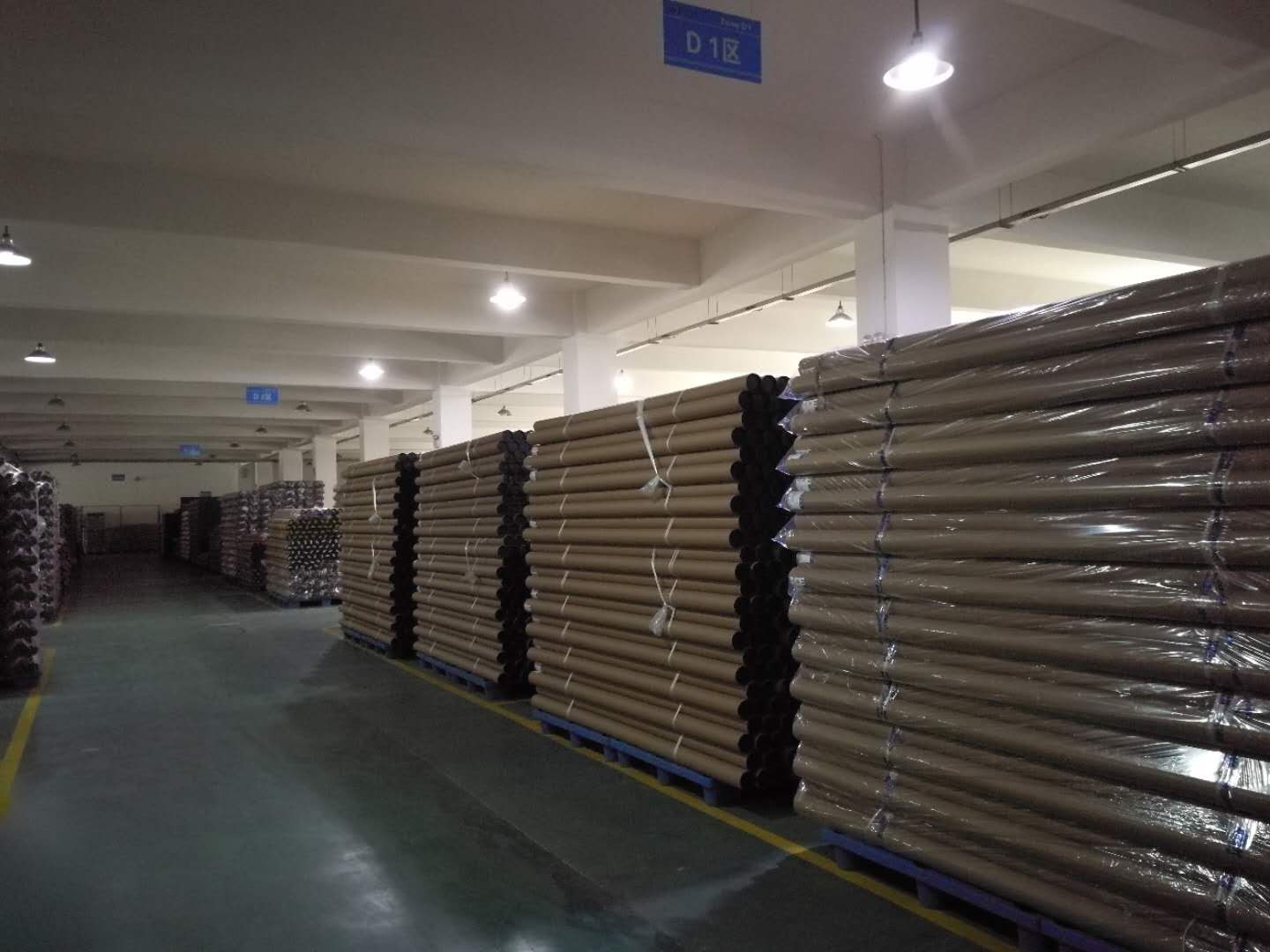

    ---Our rich stock can ensure faster and better delivery time.



    Ningbo WECO Optoelectronics CO., LTD. is not only proceeding our WECO brand elevator door detector, but also doing OEM for our customers.
