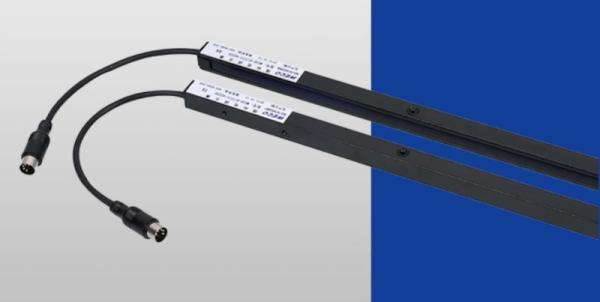

WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding

NINGBO WECO OPTOELECTRONICS CO., LTD.
Contact Now
    Buy cheap WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding from wholesalers

    Buy cheap WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding from wholesalers
    • Buy cheap WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding from wholesalers

    WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917T
    Certification : CE, CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1200000SETS/Year
    Delivery Time : 5-10 workdays
    • Product Details
    • Company Profile

    WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding

    WECO T Profile Infrared Curtain Sensor 3.5m Cable Light Curtain Guarding


    About WECO-917/ 957/ 987T lift light curtain


    Ningbo WECO Optoelectronics CO., LTD. developed elevator light curtain since 1998. And in 2004 year, WECO brand is already well known in the market.


    WECO has 917, 957 and 987 series elevator light curtain. WECO-917/ 957T model infrared light curtain is a very special model, as it has two type installation mode, one is from in front side, the other one is from side. In this case, it will be more easier to fix the light curtain during installation.


    Morever, T profile is multi functional. As all our side opening models is by T in RX.


    Applications


    WECO-T profile light curtain is always installed on passenger lift and cargo lift.


    Technical Features


    Technical Features917T6917T7957T7957T5957T8
    Number of Infra Red Diodes17 Diodes32Diodes32Diodes36Diodes40Diodes
    Response TimeRelay Output45ms61ms61ms65ms69ms
    Transistor Output21ms37ms37ms41ms45ms
    Scanning Beams94~33 Beams154~94 Beams154~94 Beams174~ 106beams194~ 118 Beams
    Infrared Diodes Range117.5mm58.8mm58.8mm48mm40mm
    The Mimimum Door Opening≤20mm
    The Maximum Door Opening≥1800mm
    Redundancy (one transimitter shielded after 120s detected absent)NOyesNONO
    Detecting Range0-4000mm
    Operation Temperature-20℃~+65℃
    Light Immunity100000 Lux
    Protection LevelIP54
    EMC ( EN12015 EN12016)General circuit levelSafety circuit level
    LED Interpretation

    1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.

    2. Yellow LED in receiver on and Red LED in receiver off without block.

    Sectional Dimension

    Package & Delivery

    * Prompt deliver at the very day.


    * Well-trained and disciplined packing team.


    * After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


    * Sophisticated and professional logistic agent.



    Competitive Advantages


    --- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years focus on elevator light curtain manufacturing and trading.


    --- Our products has been sold to more than 40 countries like Germany, Austrilia, Canada, Poland, Finland, Russia, USA, Brazil, India, Spain, UK, France, Thailand and many other countries and areas.


    --- Two automatic production lines make plenty of light curtain in stock to keep on time delivery.


    --- We have Good service and quick deliery.


    --- Flexible and Untraceable payment terms.
