    Passenger / Cargo Elevator Infrared Light Curtain Side Opening 5m Cable Sensor

    Ask Lasest Price
    Brand Name : WECO
    Model Number : WECO-917 / 957A
    Certification : CE CSA CCC
    Price : economic model
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1400000SETS/Year
    Delivery Time : 5-8 Workdays
    • Product Details
    • Company Profile

    Passenger / Cargo Elevator Infrared Light Curtain Side Opening 5m Cable Sensor

    Molik 917A Photocell, WECO Infrared Light Curtain, Side Opening, 5m Cable Sensor


    WECO-917A model Lift Door Sensor is the earliest model that Ningbo WECO Optoelectronics CO., LTD. developed since 1998. Also this model full height door sensor is widely used and purchased because of the price advantage and slim thickness. The clients always install this WECO-917A model door sensor on passenger lift and cargo lift.


    Specification


    Technical Features917A6917A7957A6957A7957A8957A9
    Number of infra red diodes17 diodes32 diodes17 diodes32 diodes40 diodes48 diodes
    Response timerelay output45ms61ms45ms61ms69ms77ms
    transistor output21ms37ms21ms37ms45ms53ms
    Scanning Bema94~33 beams154~94 beams94~33 beams154~94 beams194~118 beams234~142 beams
    Detecting Height20~1841mm
    Detecting range0~4m
    Operating Temperature-20℃~+65℃
    Light immunity1000000Luxsunlightproof
    RedundancyNOYESNOYESNO
    Led InterpretationThe yellow LED and red LED in receiver is on when blocked or in malfunction
    The yellow LED in receiver is on and red LED in receiver off without blocking.

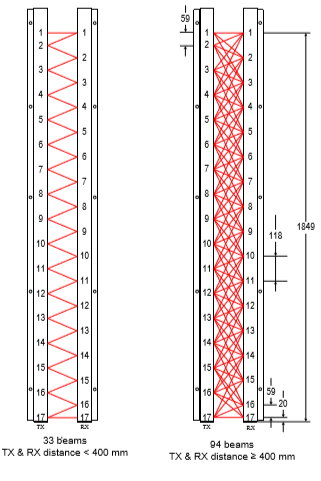

    Scanning Beams


    Package
    Every piece packed in tube,five tubes in a bundle;
    Each tube includes
    Power supply control unit (1pieces)
    Durable flexible cable (2cables)
    Transmitter (1pieces)
    Receiver (1pieces)
    User Manual (1copy)
    Mounting accessories (1 set)


    More about WECO
    --- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
    --- We have a plenty of stock for this model safety photocell both in English and Chinese version.
    --- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..

    --- Our products have been exported to Germany, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Korea, Thailand, India and many other countries.
