    Escalator Sterilization Light, Escalator Spare Parts

    Ask Lasest Price
    Brand Name : WECO
    Payment Terms : T/T
    Delivery Time : Two weeks
    • Product Details
    • Company Profile

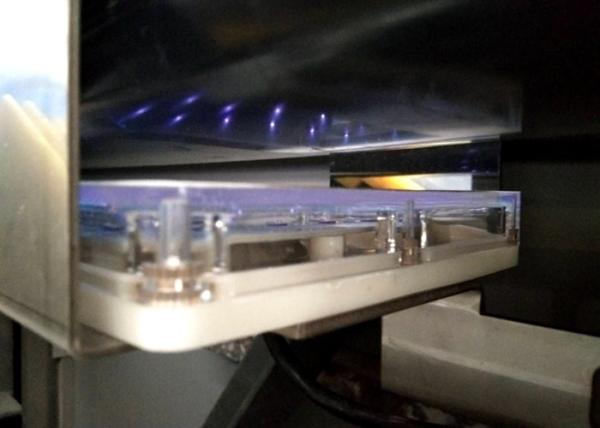

    Escalator Sterilization Light, Escalator Spare Parts

    Escalator Sterilization Light, Escalator Spare Parts


    Ultraviolet can be divided into long wave, medium wave and short wave according to the wavelength. The short wave ultraviolet has the bactericidal edffect, which is generally 200~275mm range is the best waveband for sterilization. The principle of the UVC terlization method is to damage the molecular structure of microbial cell's ( bacteria, virus and other pathogens) DNA and RNS.


    Technical Specification


    Input voltageDC24V± 10%
    Input Current< 0.15A
    Wave length270~ 285mm
    LED Size3535
    LED Quantity12pcs
    Design Lifetime1000hrs
    IP protecting levelIP55
    Working Temperature- 25 ℃ ~ + 60 ℃
    Operation Relative Humidity≤ 95%
    Storage Environment- 30 ℃ ~ + 70 ℃
    Best sterilization distance≤ 25mm ( Vertical distance between light emitting surface of lamp and handrail)
    Irradiation Area100* 50 mm
    Initial Irrandiance≥ 45 um/c㎡ ( @ 15mm)
    Irrandiance @10000Hrs≥ 40 um/c㎡ (@15mm)
    MaterialPC& SU304 & Quartz Glass
    off and on time> 300,000 times

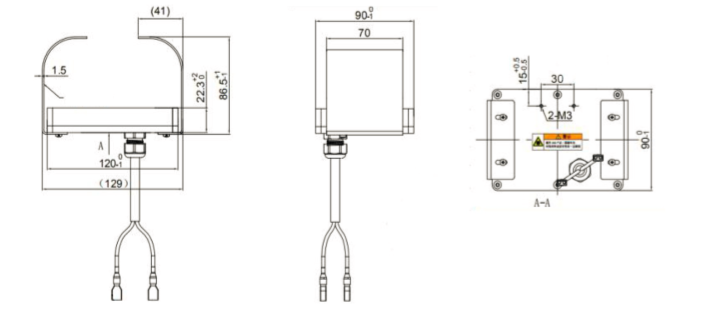

    Dimension and Structure




    Operation Hints


    * The intensity of ultraviolet light decreases with the square of the distance of the LED light source, and because of its weak penetration, it must be close to the material that being processed.


    * The effect of ultraviolet sterilization is related to irradiation time and fistance. The sterilization will be better if the irradiation time is longer and the distance is closer.
